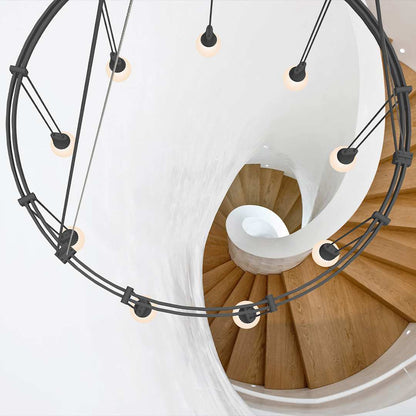

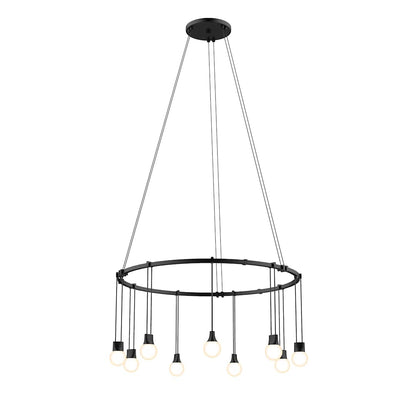

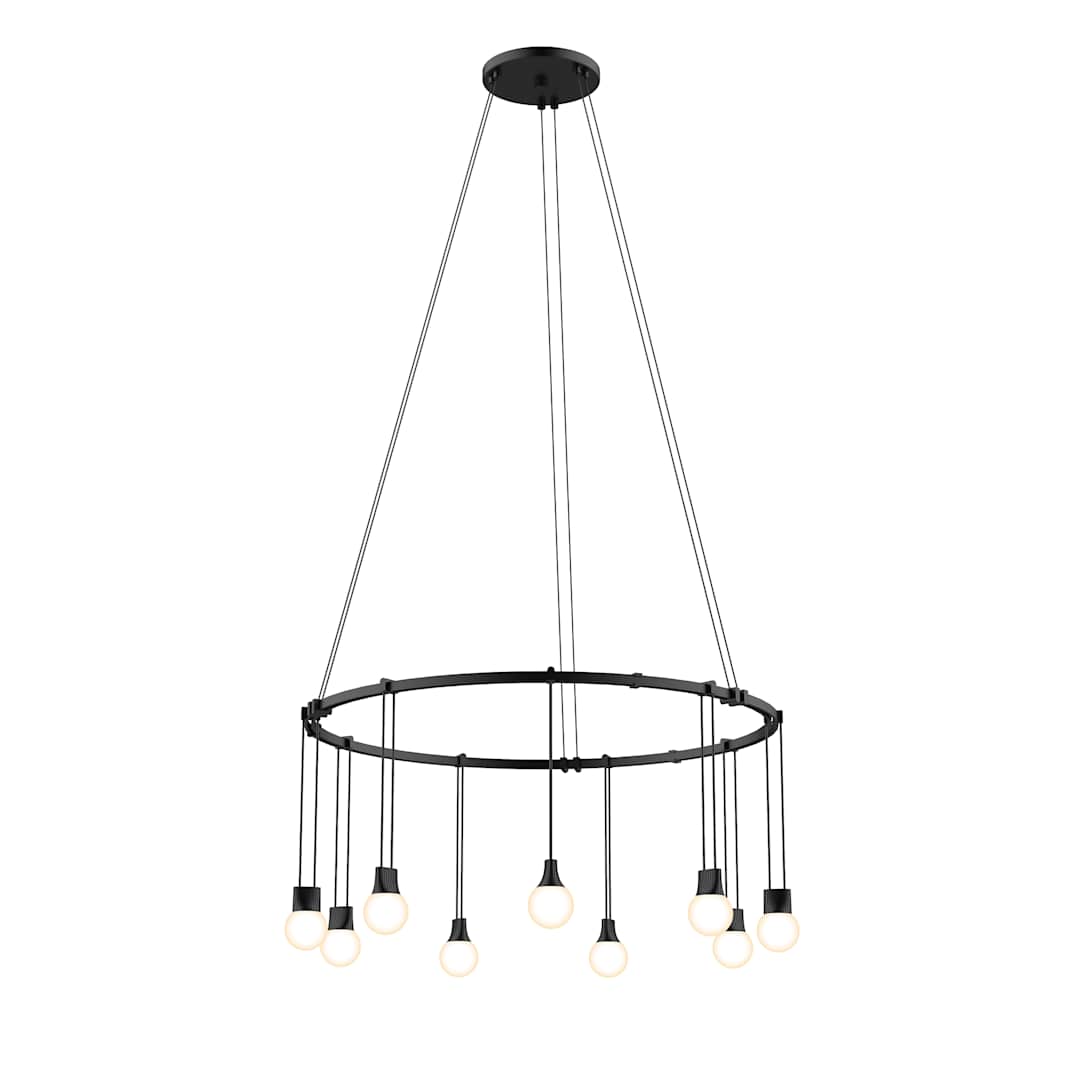

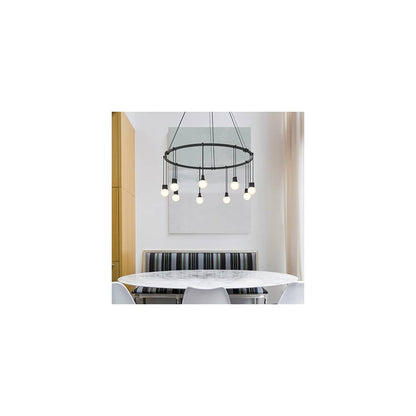

Suspenders LED Single Ring Multi Light Pendant

The Suspenders LED system is a delicately scaled, modular system of interconnected elements and suspended LED components. It can be configured as individual lighting sculptures or as a tiered web of infinite scope and variety. Using today��s leading edge technology, Robert Sonneman has reimagined and greatly expanded his original Suspenders concept from the late 1980s with a lighter scale, increased capability, and wider range of precisely scaled luminaires.

Features:

• Includes an outlet box transformer
• Uses energy efficient Integrated LED lighting
• Luminaires emit 3000K color temperature and 90CRI light
• UL listed for dry locations
• Fixture covered under a 1 year manufacturer warranty
• LED components covered under a 5 year manufacturer warranty

Luminaire Description:

• (HC01) Crystal Chiclet Cluster - Clear Ribbed Seeded Crystal
• (HC02) Etched Chiclet Cluster - Clear Etched Glass
• (HC03) Ball Cluster - White Etched Cased Glass
• (HC04) Crystal Oval Cluster - Clear Ribbed Seeded Crystal
• (RP12) Wings - Optical Acrylic
• (RP13) Crystal Double Rod - Clear Ribbed Seeded Crystal
• (RP14) Etched Double Rod - Clear Etched Glass
• (RP15) Crystal Rod - Clear Ribbed Seeded Crystal
• (RP16) Etched Rod - Clear Etched Glass
• (RP17) White Tapered Bell - White Etched Cased Glass
• (RP18) Gray Tapered Bell - Gray Etched Cased Glass
• (RP19) Amber Tapered Bell - Amber Etched Cased Glass

Fixture Dimensions:

• (HC01) - Height: 12" - Width: 35"
• (HC02) - Height: 12" - Width: 35"
• (HC03) - Height: 12" - Width: 35"
• (HC04) - Height: 12" - Width: 34"
• (RP12) - Height: 14" - Width: 26"
• (RP13) - Height: 10" - Width: 32"
• (RP14) - Height: 10" - Width: 32"
• (RP15) - Height: 16" - Width: 25"
• (RP16) - Height: 16" - Width: 25"
• (RP17) - Height: 14" - Width: 26"
• (RP18) - Height: 14" - Width: 26"
• (RP19) - Height: 14" - Width: 26"

Electrical Specifications:

• (HC01) - Wattage: 38.4 - LED Modules: 8 - Lumens: 2760
• (HC02) - Wattage: 38.4 - LED Modules: 8 - Lumens: 2760
• (HC03) - Wattage: 55.2 - LED Modules: 8 - Lumens: 3840
• (HC04) - Wattage: 55.2 - LED Modules: 8 - Lumens: 3840
• (RP12) - Wattage: 14.4 - LED Modules: 9 - Lumens: 1035
• (RP03) - Wattage: 20.7 - LED Modules: 9
• (RP13) - Wattage: 30.6 - LED Modules: 9 - Lumens: 2160
• (RP14) - Wattage: 30.6 - LED Modules: 9 - Lumens: 2160
• (RP15) - Wattage: 15.3 - LED Modules: 9 - Lumens: 1080
• (RP16) - Wattage: 15.3 - LED Modules: 9 - Lumens: 1080
• (RP17) - Wattage: 32.4 - LED Modules: 9 - Lumens: 1980
• (RP18) - Wattage: 32.4 - LED Modules: 9 - Lumens: 1980
• (RP19) - Wattage: 32.4 - LED Modules: 9 - Lumens: 1980
